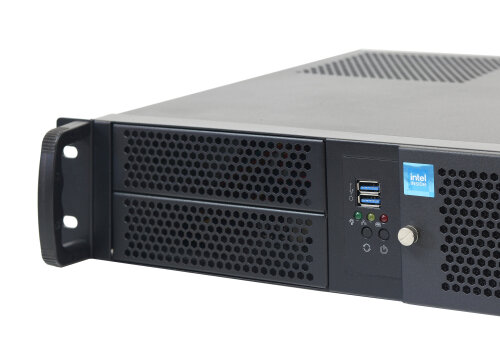

Very robust and energy-efficient 19-inch 2U all-round system based on the latest intel "Alder Lake" processor generation - equipped with Q670 chipset and optimized for 24/7 operation. Extremely compact in a short 19-inch server chassis with 2U and a depth of only 38cm. Built with high quality branded components from Kontron, intel and Kingston.
The compact all-round system is designed for 24/7 operation and is suitable for all standard tasks where a robust 19-inch system is required. As a basis, a robust mainboard from Kontron with intel Q670 chipset is used, which was developed for 24/7 use and ensures long-term availability ("Extended Lifecycle Series") . It offers all modern standards like USB 3.2 Gen.2 interfaces, 4 x SATA-600 ports with RAID 0/1/5/10 option and 2 x M.2 2280 sockets (NVMe / M-Key) for the use of up to two NVMe SSDs. The NVMe SSDs can also be operated as RAID 0/1. The design is rounded off with four Displayport 1.4a ports that can be used in parallel and two integrated Gigabit LAN ports with intel chipsets (intel i219LM/i225LM).
In the basic configuration, the system comes with intel Core i3-12100 quad-core processor (4 x 3.3GHz / 12th generation / "Alder-Lake") as well as 8GB DDR5-4800 Kingston RAM. Optionally, different processor types as well as a maximum memory expansion up to 128GB RAM are possible. Also, different hard drives or SSD's can be configured into the system with the options listed below.
The "Eco" series is manufactured by us exclusively with efficient intel processors of the categories Core i3/i5. The extremely power-saving processor variants with "T" coding and a TDP of 35W are also available for selection. The series is aimed at all users who need a power-saving compact system for permanent use and where the processor's performance is rather a secondary feature. When using the "T" processors, the "Eco" series can easily be configured as a silent system.
We are pleased to install mainboards from Kontron again in this current system series, which offer the highest quality through german development and production. The mainboards are manufactured in the Kontron factory in Bavaria, so that the supply-distances for this product can be kept extremely short. The plant in Bavaria was taken over by Kontron from Fujitsu in 2019 and is one of the last european production sites of this kind.
After system-assembly, the completed system receives an extensive and thorough system-test before being shipped. Included in the scope of supply are the complete mainboard-accessories, a blue power-cord (please contact us if you need a special cord) and several short-length SATA-cables for hassle-free cabling of your devices.
The previous description of the system is the basic layout - you can choose between different configurations of your system below. Please not that the system does not include an operating system.
Please note the following:
- only low-profile PCI/PCI-E expansion-cards may be installed into this system.
- only up to two 3.5 inch harddisks may be installed in the 3.5 inch modules due to confined space. Further harddisks would interfere with the mainboard.
