Dynatron B3 1U CPU-cooler / socket FCLGA 3647 - narrow ILM format

SKU: 9018
Manufacturers: Dynatron

Type:	1U
Socket:	LGA3647/Narrow

€ 46,90

incl. 19% VAT , plus Tax-zone / delivery-country:

Low stock level
Delivery time (Germany): 2 - 3 workdays (*)

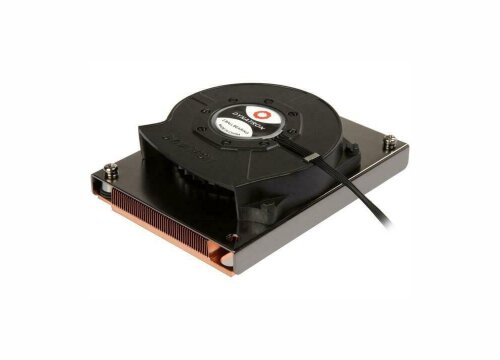

Very powerful and extremely compact cooler for intel processors with socket FCLGA 3647 in narrow ILM format. The cooler fits into 19-inch enclosures with 1U or larger and cools processors with a maximum TDP of up to 165 watts - but works quite loudly. Cooling is provided by a massive copper heatsink and high-performance radial fan with dual ball bearing. High-quality and robust industrial quality from Dynatron.

Manufacturer information:

Dynatron

,

Type:	Dynatron B3
Socket:	intel FCLGA 3647
CPU Support:	intel processors with socket intel FCLGA 3647 up to a TDP of 165 Watt max.
Dimensions (all in all):	(WxHxD) : 107.0 x 80.5 x 28.0 mm
Weight:	460g ± 10g
fan:	80x15mm / PWM
speed:	At load factor 20%: 1000 rpm / At load factor 50%: 4000 rpm / At load factor 100%: 7000 rpm
Power consumption:	At load factor 20%: 0.6 W / At load factor 50%: 3.84 W/ At load factor 100%: 19.2 W
Airflow:	At utilization 20%: 3.0 CFM / At utilization 50%: 12.0 CFM / At utilization 100%: 21.0 CFM
Noise level:	At utilization level 20%: 16.0 dBA / At utilization level 50%: 44.9 dBA / At utilization level 100%: 57.1 dBA
Other:	- Material Heat sink: Copper 1100 with skived fins - narrow ILM mounting - Ball bearing: 2 Ball - Nominal voltage: 12 V - Connections: Pin1 (-), Pin2 (+), Pin3 (tachometer signal output) Pin1 (-), Pin2 (+), Pin3 (tacho signal output), Pin4 (PWM)
